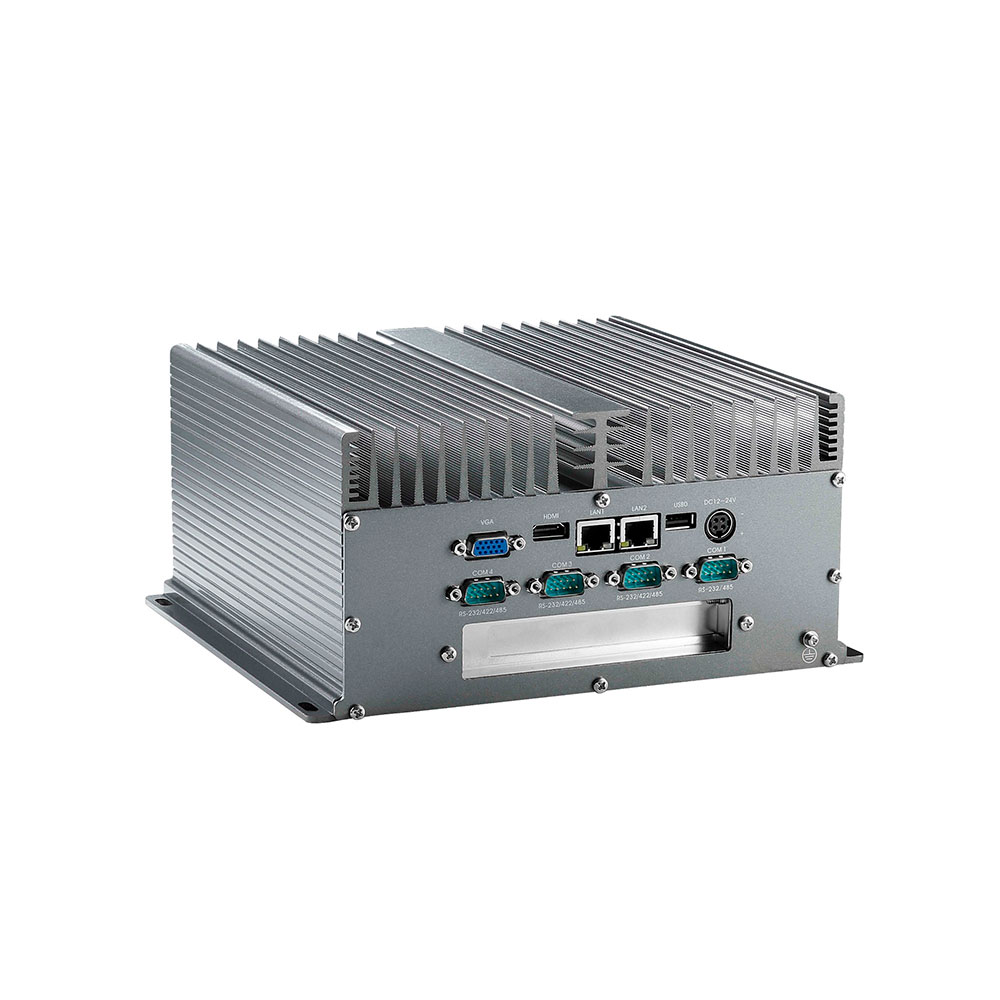

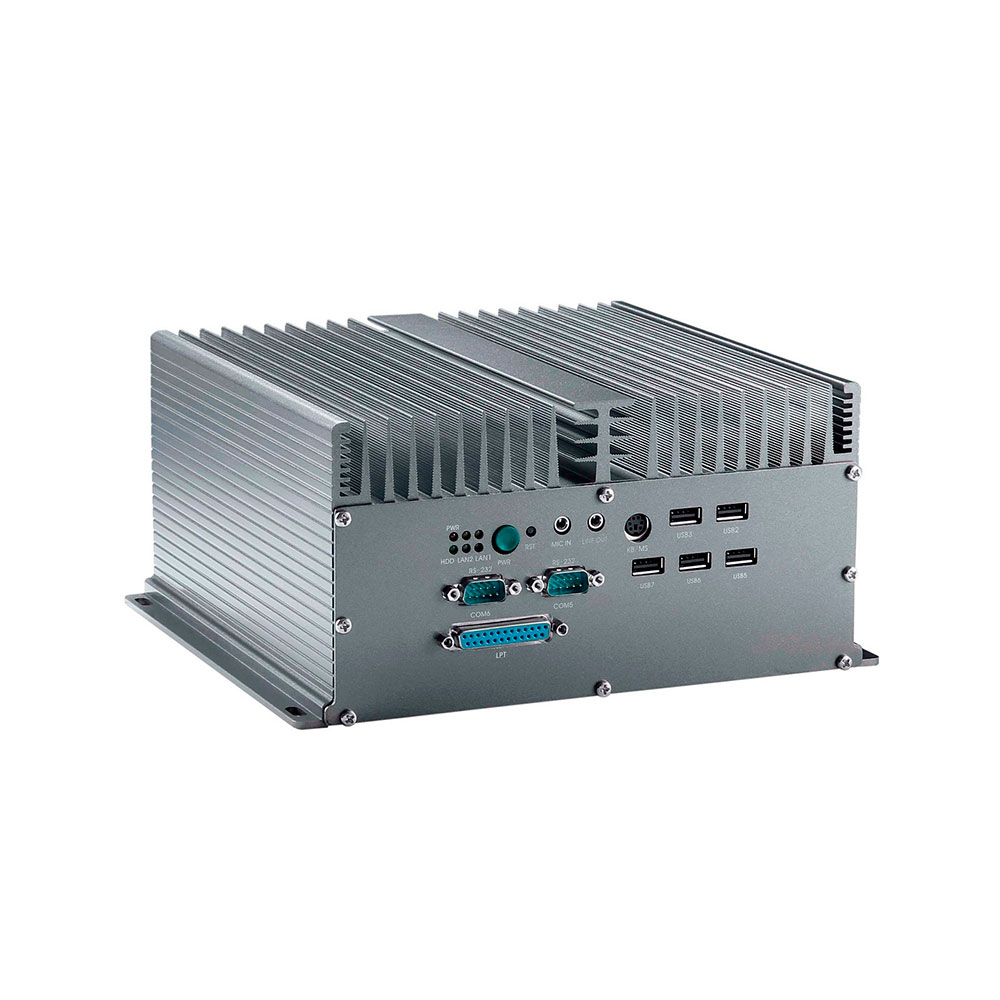

詳細信息
CPU：Intel Core i7-3520M/i5-3210M GPU
芯片組: Intel HM76
內(nèi)存: DDR3 SO-DIMM
I/O端口：1*LINE OUT&MIC,6*USB,2*LAN,1*HDMI,1*VGA,1*KB/MS
串口：2*RS-232,1*RS-232/485,3*RS-232/422/485
看門狗:256級,可編程時間到中斷、時間到系統(tǒng)復位
存儲：1*2.5"SATA盤位
擴展槽位：1個PCI(或PCIE X1)槽位
擴展總線：1個標準mPCIEx1接口或mSATA
電源：DC_IN 12~24V
尺寸：246*209*114mm(W*D*H)
| Processor System | CPU | Intel® Core? i5-3320M Processor (3M Cache, up to 3.30 Ghz) |
| Chipset | Intel HM76 | |
| BIOS | 32Mb AMI SPI | |
| Memory | Max. Capacity | up to 8.0GB Max. Capacity |
| Socket | 1*204Pin DDR3 SO-DIMM socket | |
| Graphics | Controller | Intel® HD Graphics 4000 |
| Ethernet | LAN | 2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL |
| Audio | Interface | HD Audio,1*Line-out, 1* Mic-in |
| Storage | HDD | 1 x SATA HDD Bay for 2.5" |
| 1 x Msata | ||
| Expansion | Mini PCIE | 1*mPCIEx1 or 1*Msata |
| PCI | 1*PCI Slot | |
| External I/O Interface | Serial Port | 2*RS-232, 1*RS-232/485, 3*RS-232/422/485 |
| USB | 6*USB | |
| Audio | 1*LINE-OUT & MIC-IN | |
| LAN | 2*RJ45 | |
| KB/MS | 1*KB, 1*MS | |
| Display | 1*VGA, 1*HDMI | |
| Inner I/O Interface | SIM | 1*SIM Slot (Optional) |
| LPT | 1*LPT (Optional) | |
| DIO | 1*16-bit DIO (Optional) | |
| Watchdog | Watchdog timer | Programmable 256 levels timer interval, setup by software |
| Power Requirements | Power Input Votage | DC_IN 12~24V |
| Power Adapter | AC-to-DC Adapter, DC12V 7.5A 90W (Optional),with DC Jack Plug | |
| Power cable | With plug USA type/ Europe type/UK type (by requirement) | |
| Software Support | Microsoft Windows | XP,Win7/8/10，windows 2008 |
| Linux | Support (by project) | |
| General | Dimensions (W x Dx H) | 246 x 209 x 114mm |
| Case Colour | Iron gray | |
| Mounting | Stand/ Wall | |
| Enclosure | Aluminum Housing | |
| Thermal Solution | Fanless | |
| Environment | Operating Temperature | -20 ~ 60°C |
| Storage Temperature | -40 ~ 80°C | |
| Relative Humidity | 5~ 95% (non-condensing) |
